LD overhead crane commonly called a bridge crane, is a type of crane found in industrial environments. An overhead crane consists of parallel runways with a traveling bridge spanning the gap. A hoist, the lifting component of a crane, travels along the bridge.
Three purpose steel lifting ld single girder bridge crane is widely used in plants,warehouses,material stocks to lift godds. It is prohibited to use the equipment in the combustiblle,explosive or corrosives enviroment.

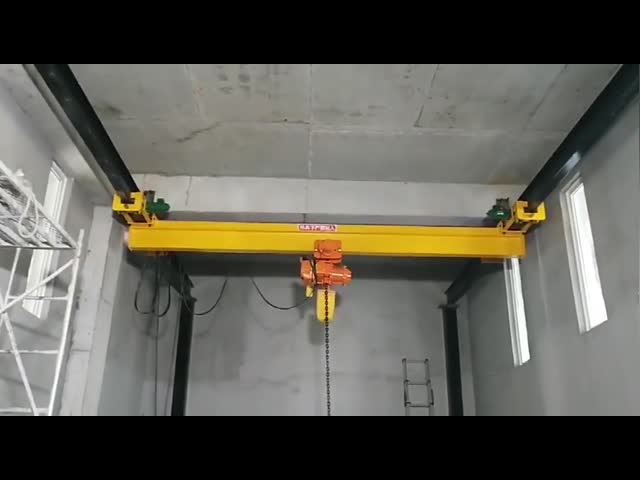

Single girder bridge crane mainly includes the lifting mechanism, running mechanism, beam frame and electric parts. The hoist of single beam overhead crane sale runs along the main beam, which is always set in all kinds of workshops, warehouse and material yards. The space under the single girder bridge crane can be fully used to transport the material without the hindrance of the ground equipment.
Here show you the approximate EXW price of our product for your preview. This price just for reference for your budget, if any interest please click "More" to see detailed price sheet.
| EXW PRICE LIST FOR YOUR REFERENCE | ||||||
| Load capacity | Span | |||||
| 7.5m | 12m | 16.5m | 21m | 25.5m | 30m | |
| 2t | US$2,050.00 | US$2,500.00 | US$3,150.00 | US$4,000.00 | US$5,050.00 | US$6,350.00 |
| 3t | US$2,250.00 | US$2,800.00 | US$3,385.00 | US$4,500.00 | US$5,650.00 | US$6,750.00 |
| 5t | US$2,650.00 | US$3,285.00 | US$3,850.00 | US$5,125.00 | US$6,055.00 | US$7,625.00 |
| 10t | US$3,950.00 | US$4,750.00 | US$5,585.00 | US$6,750.00 | US$8,350.00 | US$9,950.00 |
| 16t | US$4,650.00 | US$5,500.00 | US$6,485.00 | US$8,100.00 | US$9,825.00 | US$11,650.00 |
| 20t | US$6,200.00 | US$7,150.00 | US$9,120.00 | US$10,600.00 | US$12,400.00 | US$14,550.00 |
| Crane Travelling Device | Travelling speed (m/min) | 20 | 30 | 45 | 60 | 75 | |
| Reducer ratio | 58.95 | 39.42 | 26.38 | 19.37 | 15.88 | ||
| Motor | Model | ZDY21-4 | ZDR12-4 | ||||
| Power (kw) | 2x0.8 | 2x1.5 | |||||
| Rotation (r/min) | 1380 | ||||||
| Lifting device | Electric Hoist model | single/double speed | |||||
| (Electric hoist) | Lifting speed (m/min) | 8, 0.8/8 | |||||
| And hoist travelling device | Lifting height (m) | 6, 9, 12, 18, 24, 30 | |||||
| Travelling speed (m/min) | 20 (30) | ||||||
| Motor | Taper Squirrel-cage type | ||||||
| Work duty | A3- A5 | ||||||
| Power supply | 380V, 50Hz, 3-Phase or on your request | ||||||
| Rail type | P24/38 | ||||||
